Autonics Thyristor Units

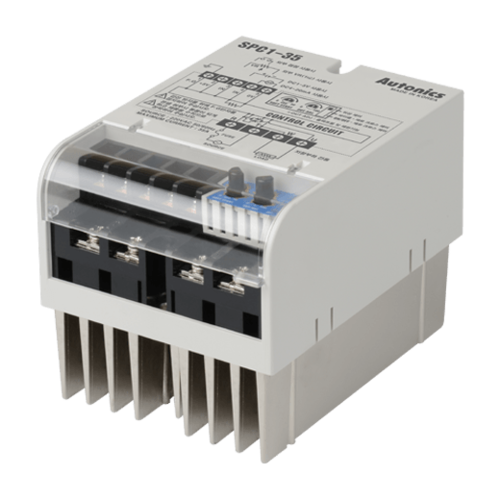

Autonics SPC1-35

Control phase : Single-phase Control method : Phase control Cycle control (zero cross turn-on)-Control period: 0.5 sec, 2 sec, 10 sec ON/OFF control (zero cross turn-on) Power supply : 220VAC~ 50/60Hz Applied load : Resistance load(min. load: over 5% of rated current) Rated load voltage : 220VAC~ Ambient temperature : 0~50℃

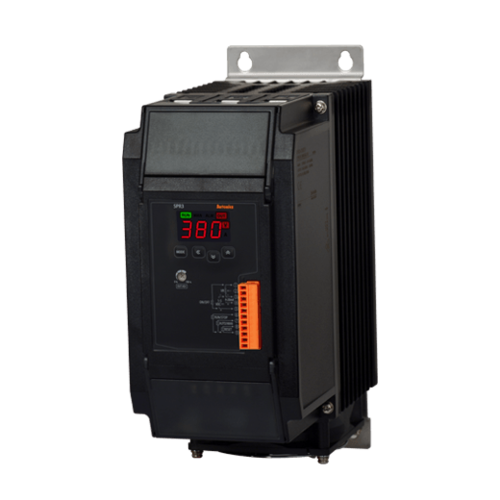

Autonics SPR3-450NFF

Control phase : 3-phase Rated load voltage : 440VAC~ Rated load current : 50A Control input : ᆞAuto control: DC4-20mA, 1-5VDC , ON/OFF contact (no-voltage input), pulse voltage (5-12VDC ) ᆞManual control: outside adjuster (10kΩ), inside adjuster (output limit) Power supply : 100-240VAC~ 50/60Hz

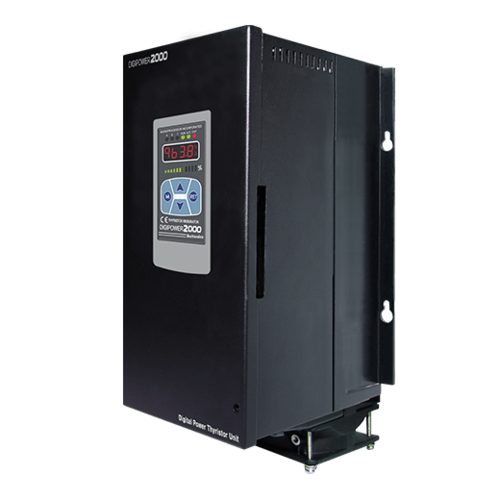

Autonics DPU34A-050D

Number of phase : 3-phase Power supply : 440V Output range : Phase control: 0 to 98%, Z.C. control: 0 to 100% Control method : • Phase control: Normal control(Non-Feedback), static voltage/static current/static power control(Feedback) • Cycle control (Z.C.): Fixed cycle control, Variable cycle control • ON/OFF control (Z.C.) Load : • Phase control: resistance load, inductive load • ON/OFF, Cycle control: resistance load

Digital Power Thyristor Units
